Arctic MegaStore
In stock
Fast delivery worldwide
Revolutionary two-storey design, modular flexibility, and huge storage capacity – the Arctic MegaStore redefines cold storage efficiency.
The all-in-one container solution you want, at the temperature you need
-
Stay compliant
Protect your products and meet all regulatory standards with trusted precision and reliability. -
Cut complexity
Simplify your operations, slashing costs, boosting productivity and reducing friction. -
Scale effortlessly
Prepare for the long term, future-proofing your storage so it evolves as you do.
Arctic MegaStore
Key features
-

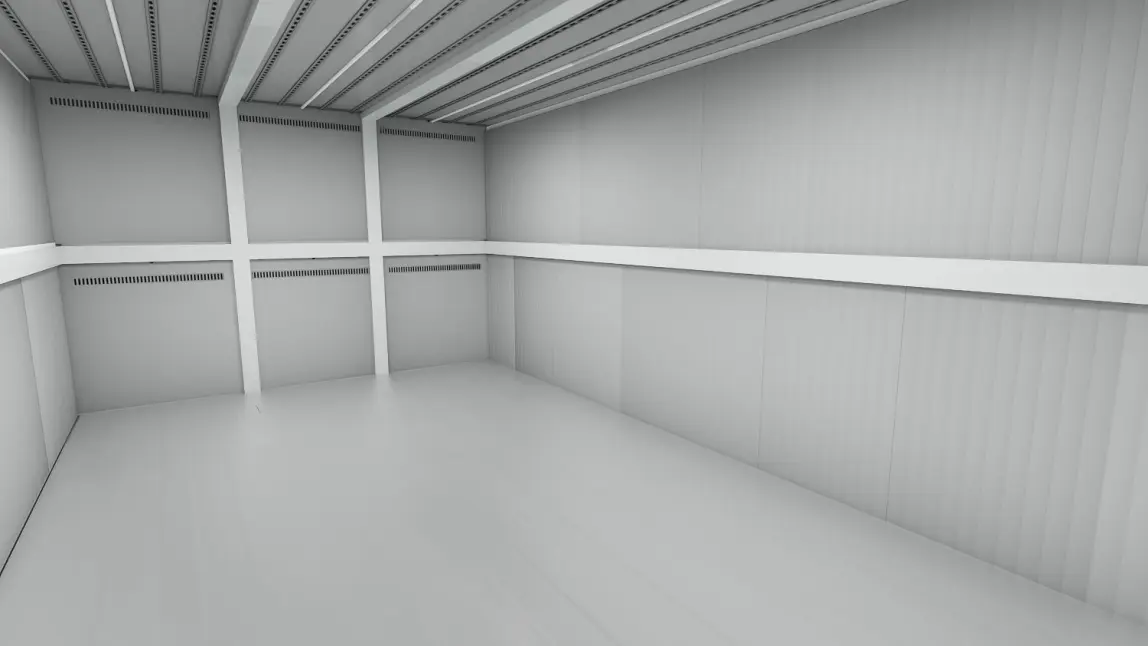

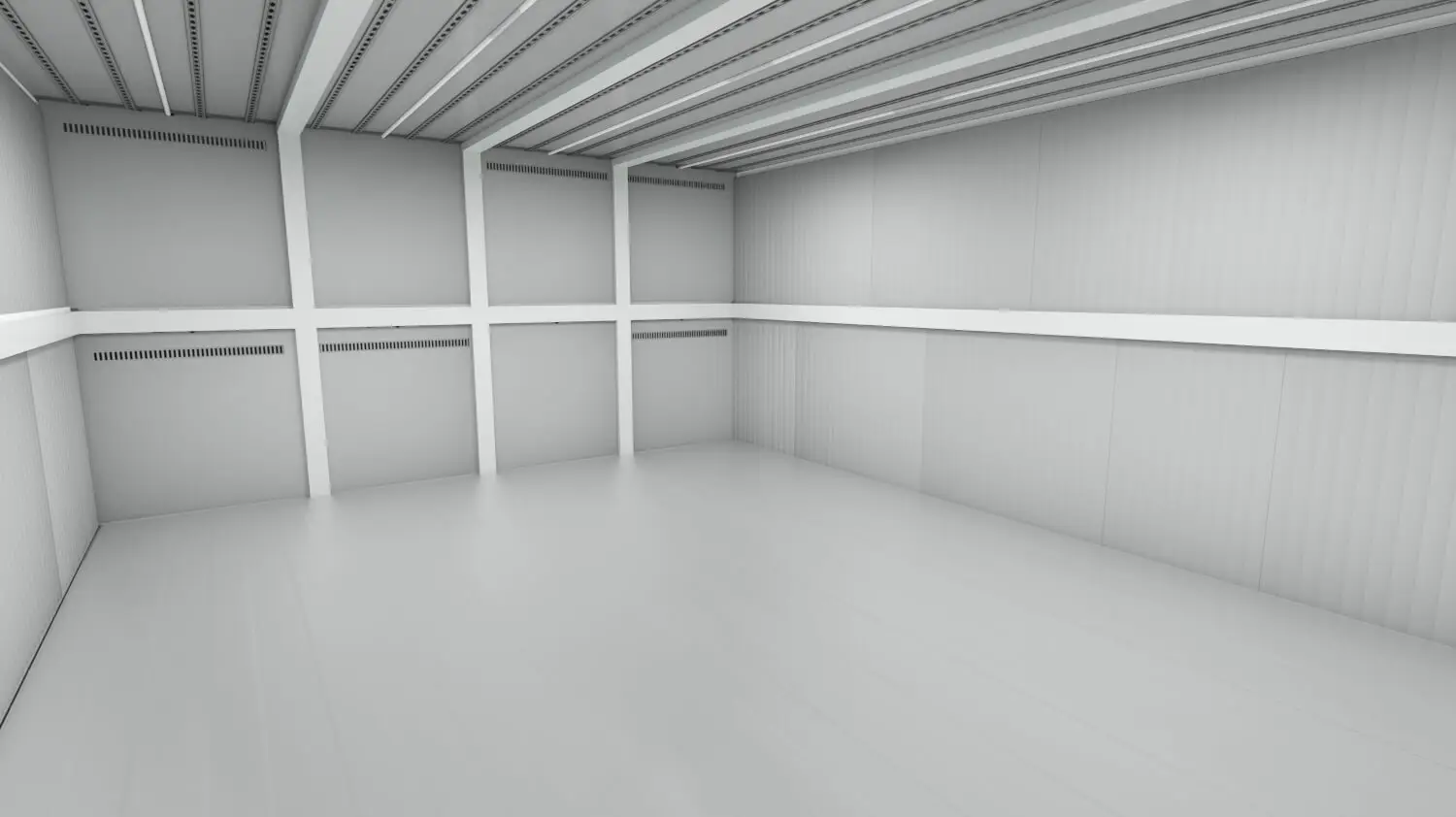

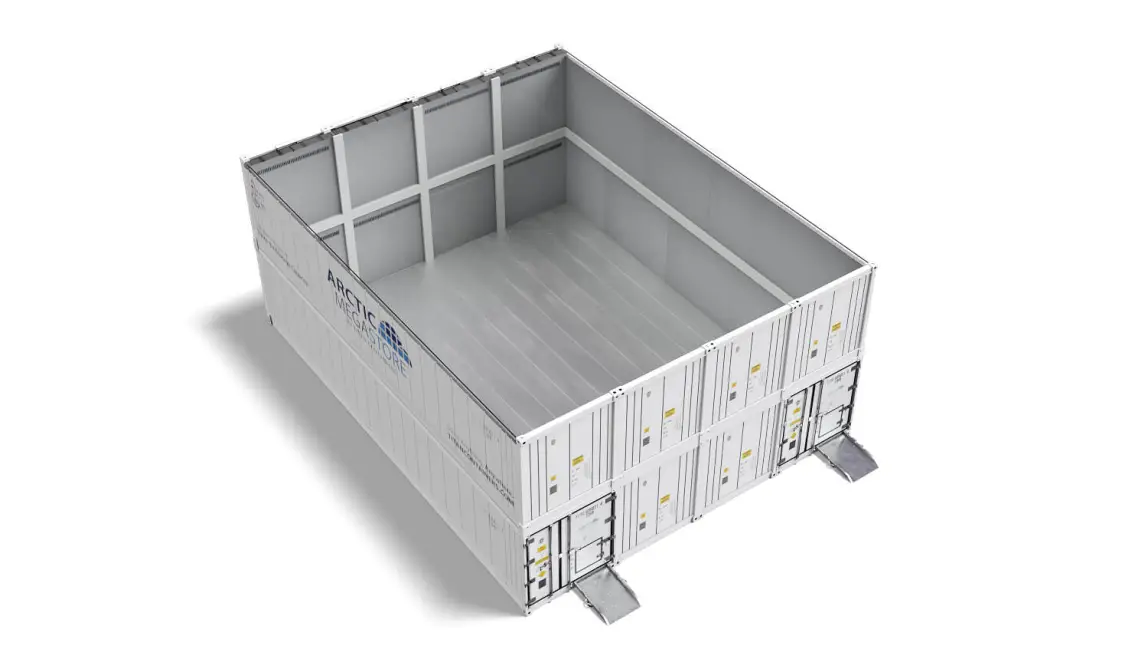

Extra-tall!Modular two-floor open-plan cold roomGet the maximum possible storage space – whatever your footprint – with world's first double-height solution. -

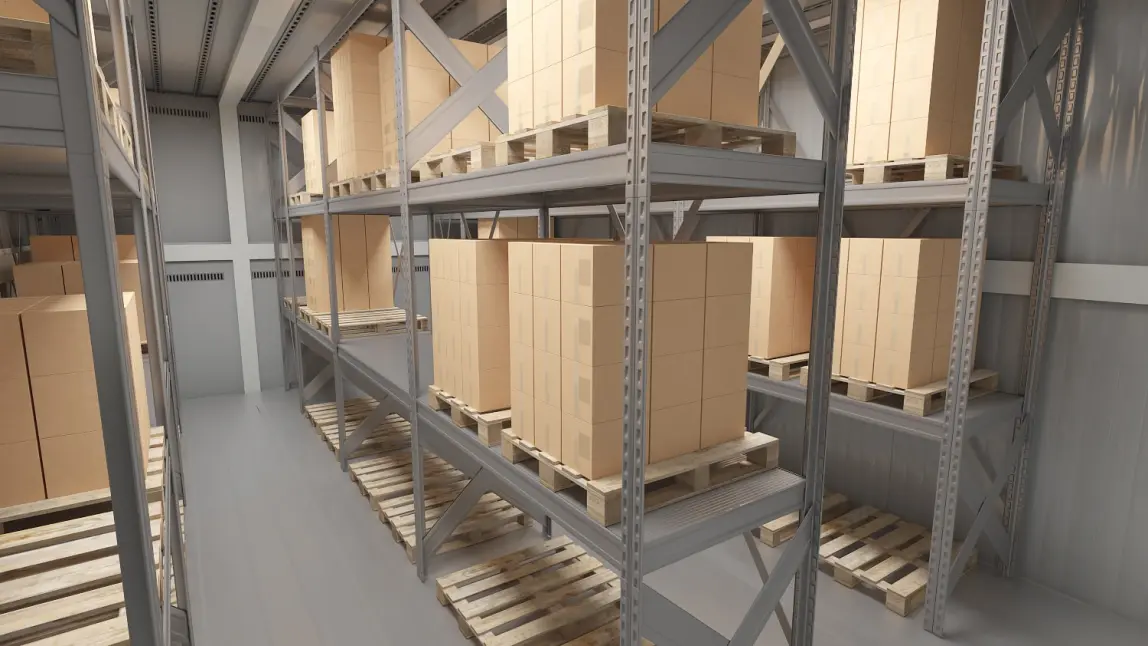

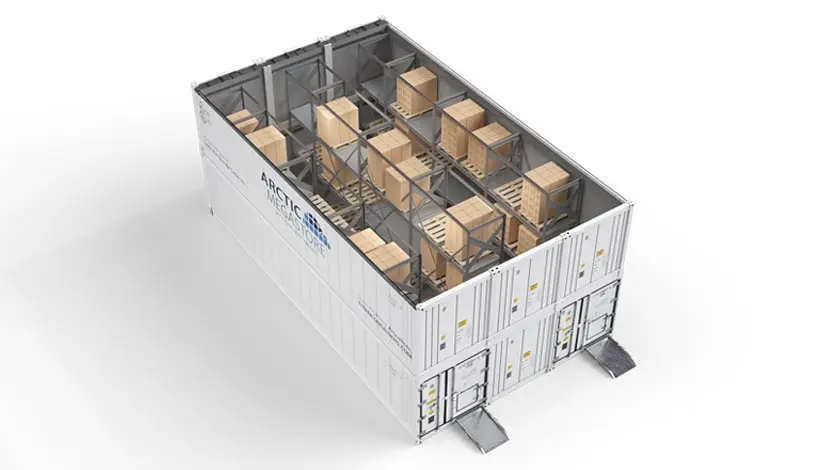

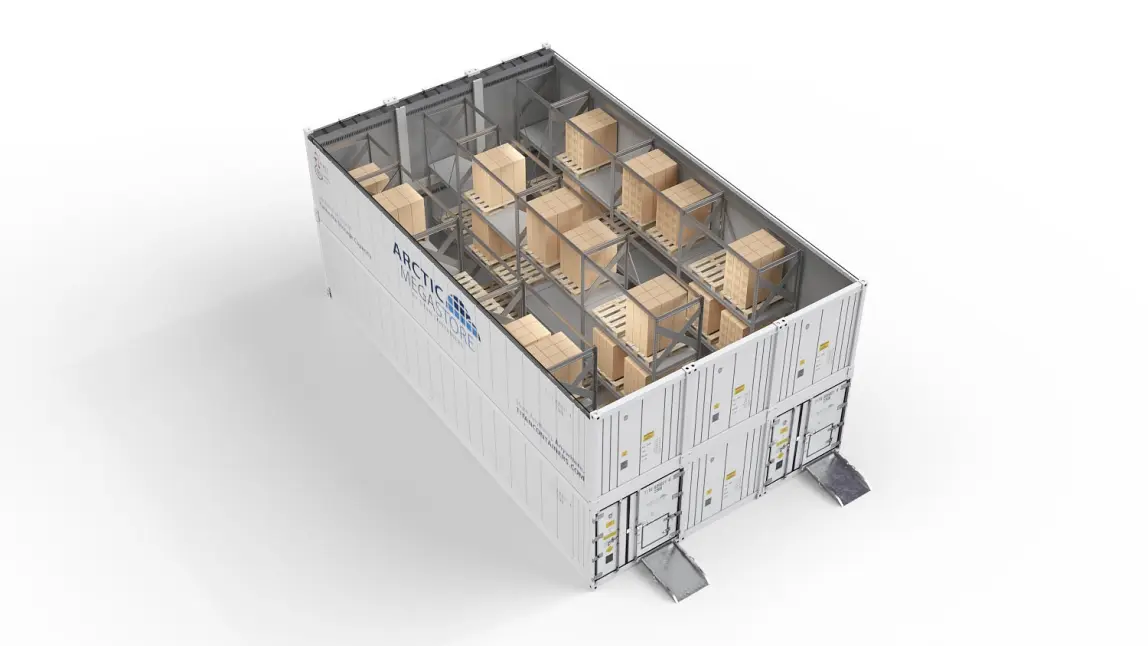

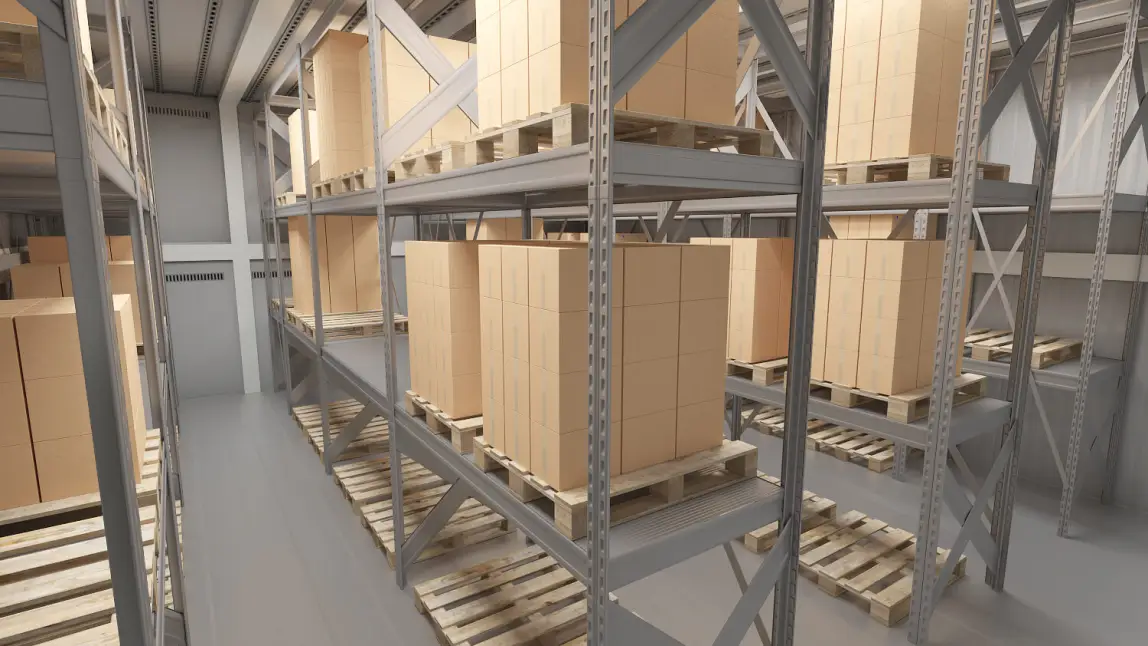

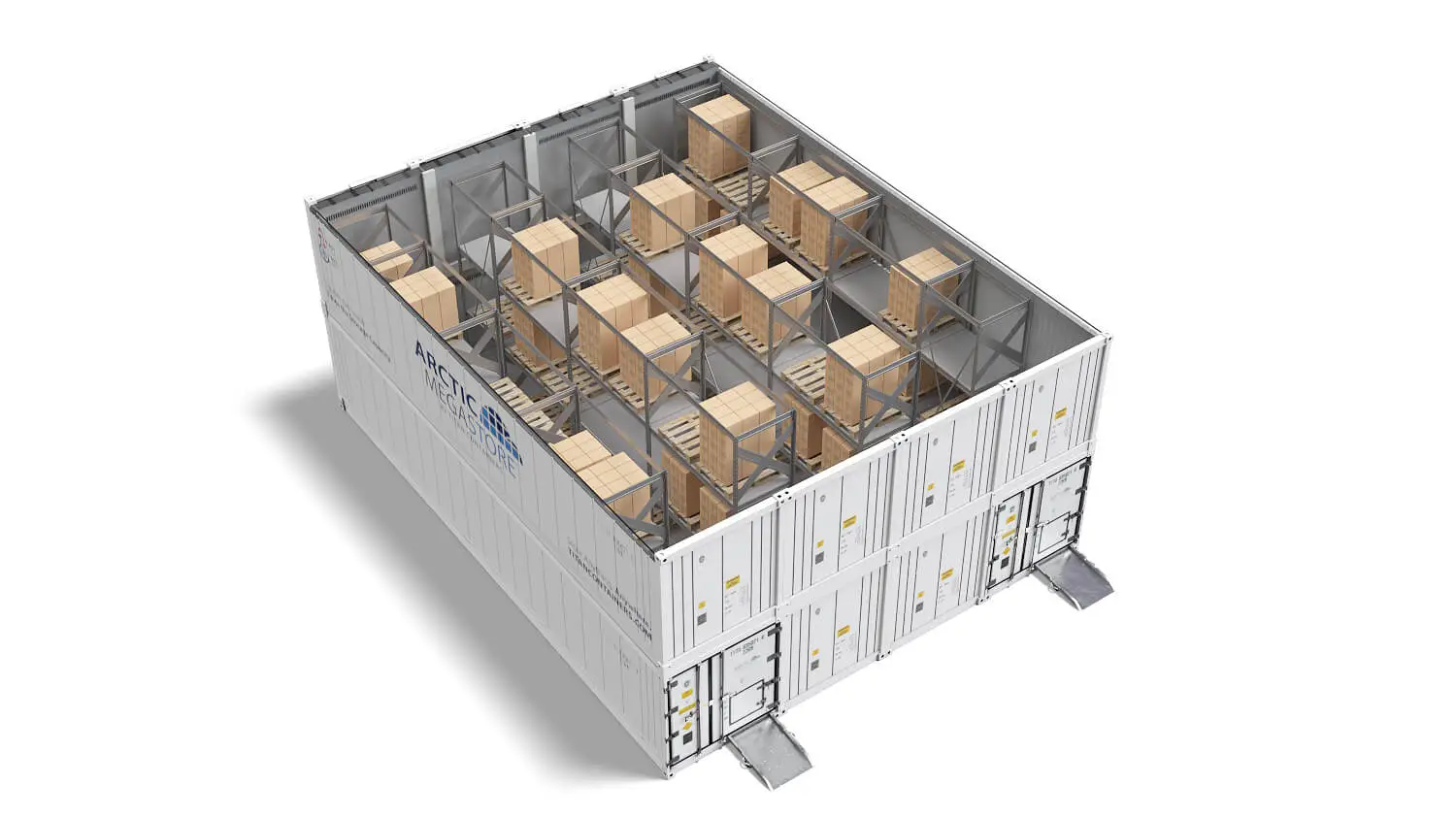

StorageFull-height shelving for optimal storageThere's 5 vertical metres of storage space in a MegaStore – optional shelving kits keep things tidy.
-
AccessEasy opening and closing doorsSpeed up loading and unloading with doors engineered for smooth, efficient, one-handed operation.
-
SafetyInternal door release & escape hatchPlus trapped person alarm. MegaStores are equipped with a comprehensive range of safety features.
-
Reduced Air ExchangeDurable sliding strip curtainsThese rugged easy-access curtains help maintain internal temperatures by reducing cold-air loss.
-
ControlAny temperature from -40°C to +45°CEasily set the exact temperature you need – or choose multiple settings in different zones/bays.

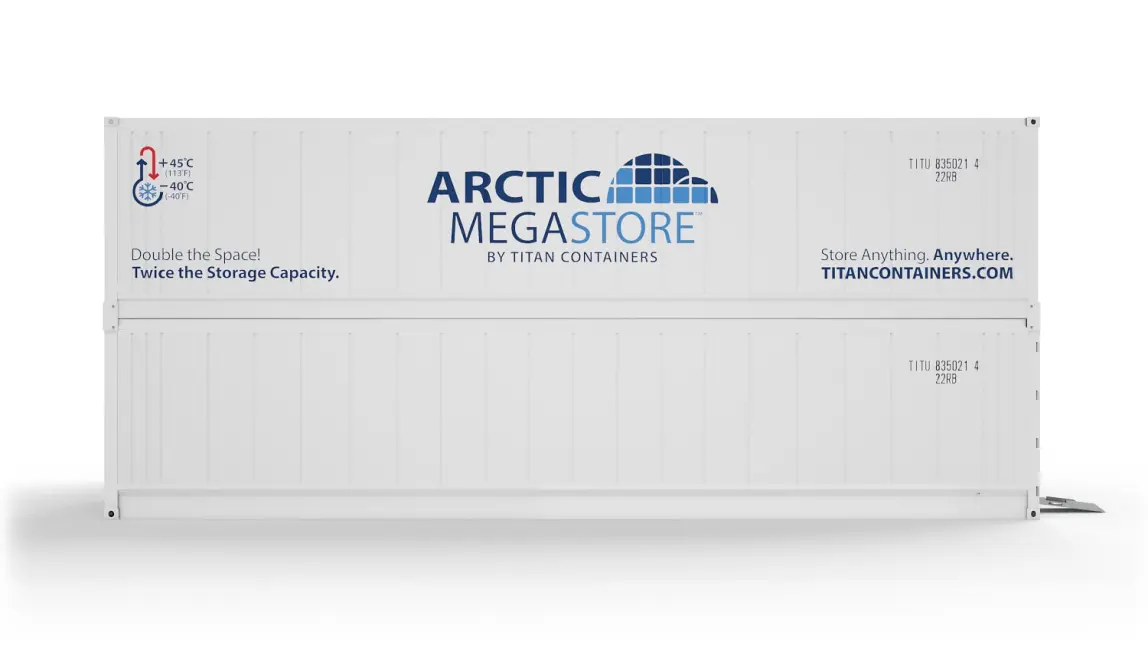

Arctic MegaStore
The world’s first vertical cold storage solution
For more than a decade, TITAN has been installing modular cold storage ‘warehouses’ tailored to clients’ unique needs. Our ‘Arctic SuperStores’ – single-level container warehouses – have reached up to 800m² in size and can be scaled even larger!
Now, we’ve taken it vertical.

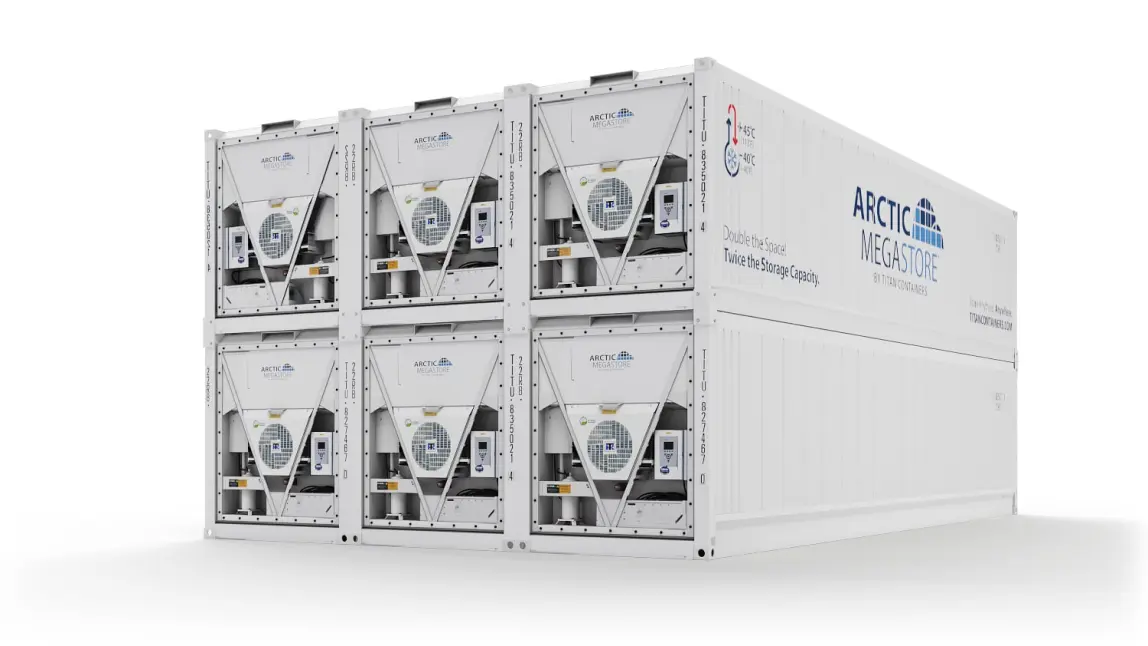

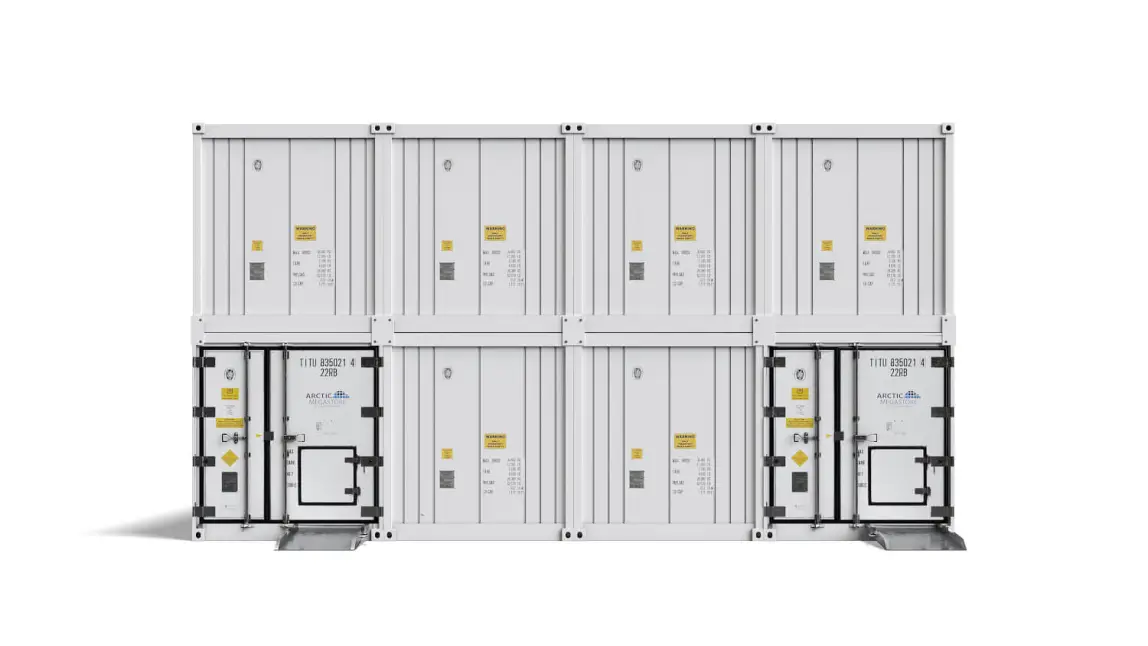

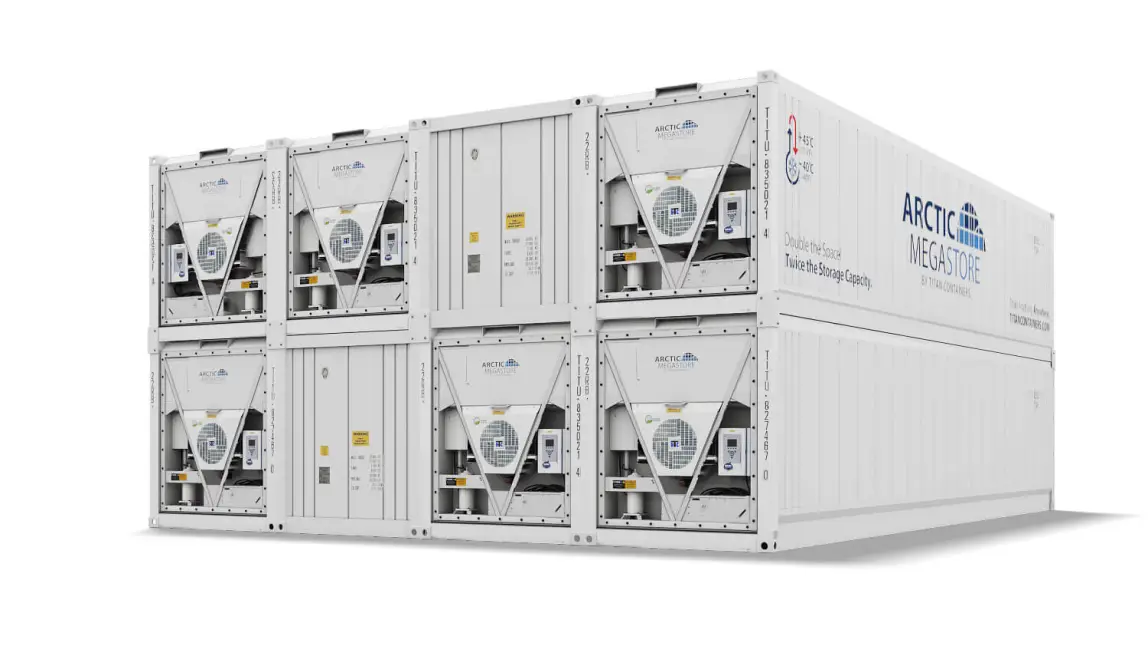

After extensive research and testing, TITAN introduces the Arctic MegaStore – a two-storey cold storage system built by safely stacking reefer containers and turning them into one large, open-plan cold room for maximum storage capacity.
This breakthrough allows you to double your storage volume without increasing your footprint.
- Fully modular and scalable fridge and freeezer solution
- Rapid installation
- Optimised use of available floorspace (example: 360m³ of cold storage on just 90m²)
- Customisable reefer setup with extra or larger doors
Arctic MegaStore
Everything you need to know
Certificates
External dimensions
Internal dimensions
Suitable for several sectors
Power plug details
MegaStore configurations 40ft
MegaStore
MegaStore configurations
Number of pallets:
There is effectively no limit to the total size, MegaStore modules can be joined side by side (no supporting posts to interfere in use) and end or side to end where corner posts exist.
All measurements should be used as a guide. Small variations can and do apply.
Please note: our Arctic Tropical containers have slightly different dimensions.
MegaStore configurations 40ft
- Mega 3
-
External length
12.19m40ft
-
External height
5.60m18.39ft
-
External width
7.35m24.11ft
-
Internal width
6.41m21.03ft

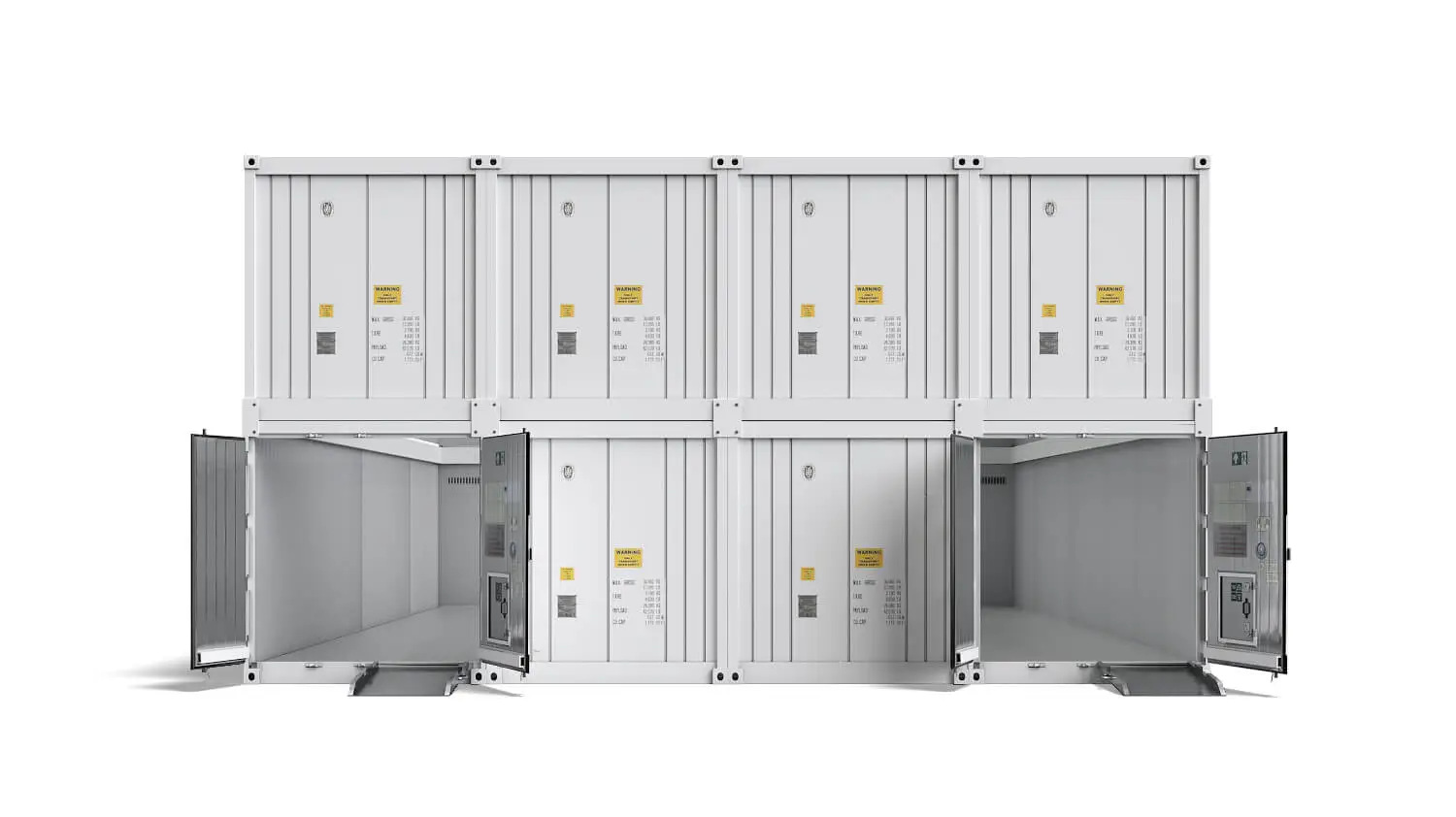

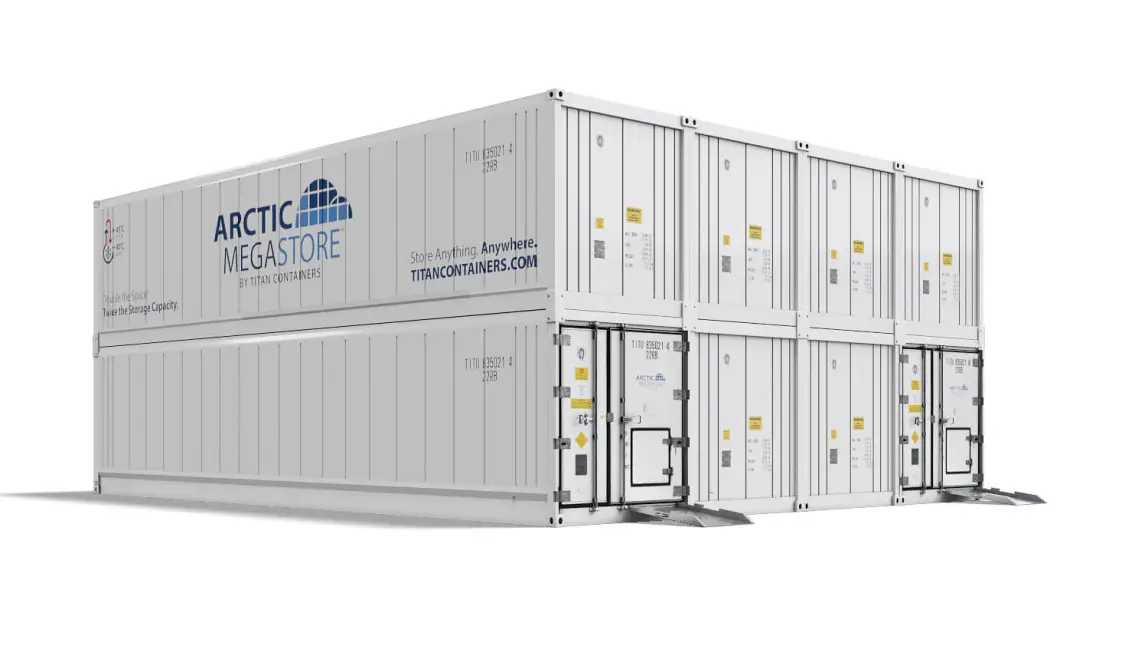

- Mega 4
-
External length
12.19m40ft
-
External height
5.60m18.39ft
-
External width
9.81m32.18ft
-
Internal width
8.87m29.10ft
- Mega 5
-
External length
12.19m40ft
-
External height
5.60m18.39ft
-
External width
12.26m40.22ft
-
Internal width
11.32m37.14ft
- Mega 6
-
External length
12.19m40ft
-
External height
5.60m18.39ft
-
External width
14.71m48.27ft
-
Internal width
13.77m45.18ft
- Mega 7
-
External length
12.19m40ft
-
External height
5.60m18.39ft
-
External width
17.16m56.29ft
-
Internal width
16.22m53.20ft
- Mega 8
-
External length
12.19m40ft
-
External height
5.60m18.39ft
-
External width
19.61m64.37ft
-
Internal width
18.67m61.25ft
- Mega 9
-
External length
12.19m40ft
-
External height
5.60m18.39ft
-
External width
22.06m72.41ft
-
Internal width
21.12m69.28ft
- Mega 10
-
External length
12.19m40ft
-
External height
5.60m18.39ft
-
External width
24.51m80.38ft
-
Internal width
23.57m77.30ft
Boost your capacity without expanding your premises
Whether you are in retail, pharmaceuticals, food production or any other industry, space at your business address is often limited – and expensive to increase.
Business growth, however, is often reliant on increased cold storage capacity. When you are running out of floor space, Arctic MegaStore is the answer.

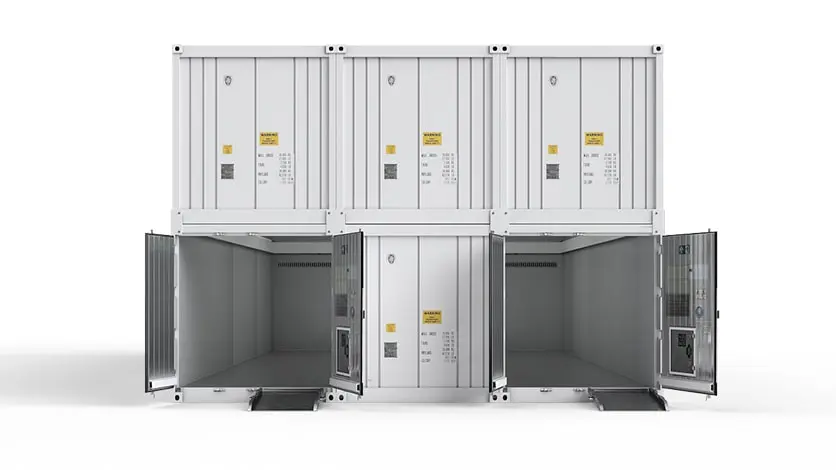

Using a minimum of 6 × 40 ft ArcticStore cold storage containers – 3 on the ground floor and 3 on the first floor (also known as a 3-bay) – we can install a customised MegaStore at your premises that delivers massive impact in a compact footprint.
- Available from 3-bay and up to as many bays as you need
- Chill as low as -40°C
- Forklift-accessible reefer containers with 5m internal height
- Numerous safety features included
- Can be made using our ultra-energy-efficient ArcticStore Horizon chiller containers (average energy savings: 55%)
Modular design for infinite possibilities
TITAN’s ArcticStore freezer containers are like building blocks, and they can be arranged exactly as you want. It means unique configurations are possible – including large, open-plan spaces.
Quicker and cheaper to install than a permanent cold storage facility, MegaStores can be created indoors or outdoors on flexible contracts that match your capacity needs.

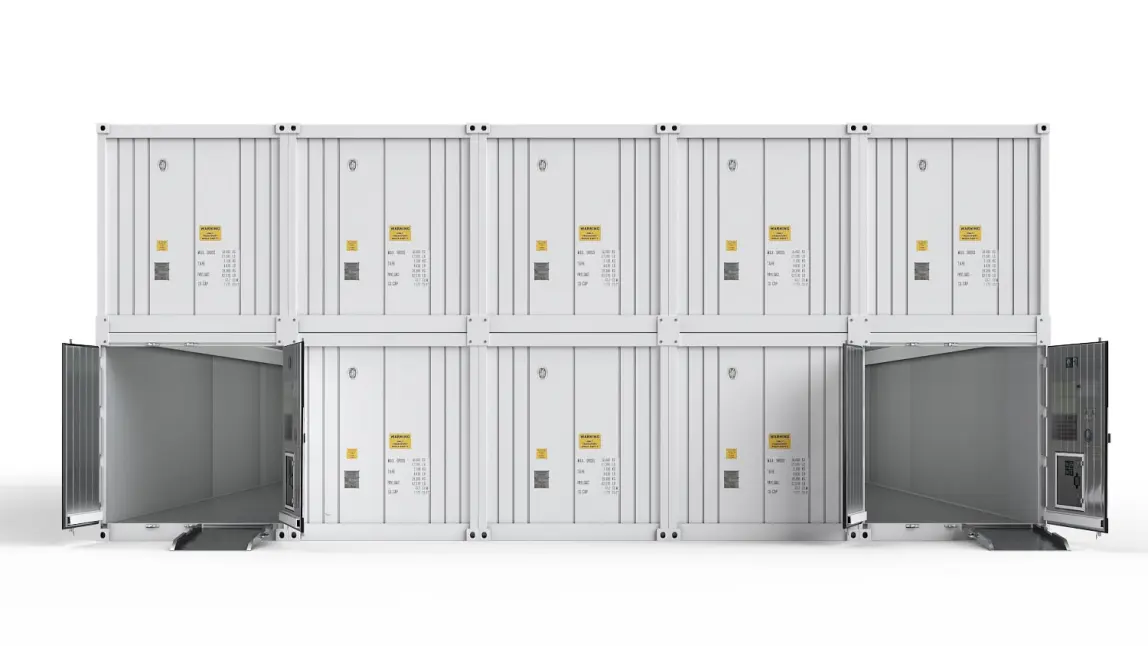

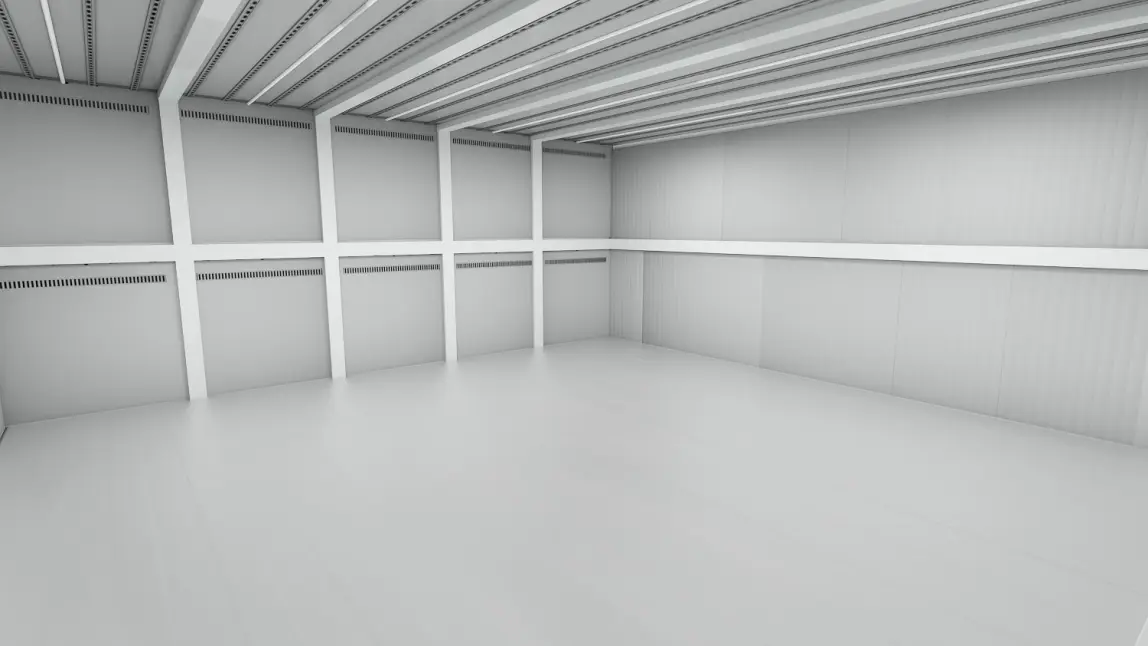

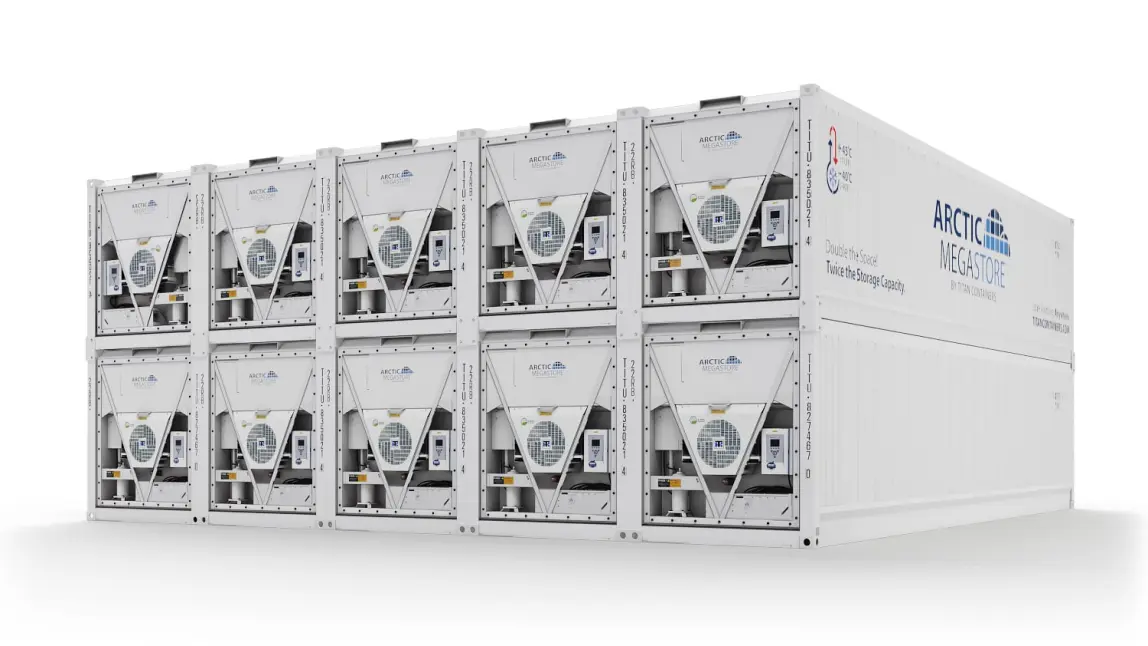

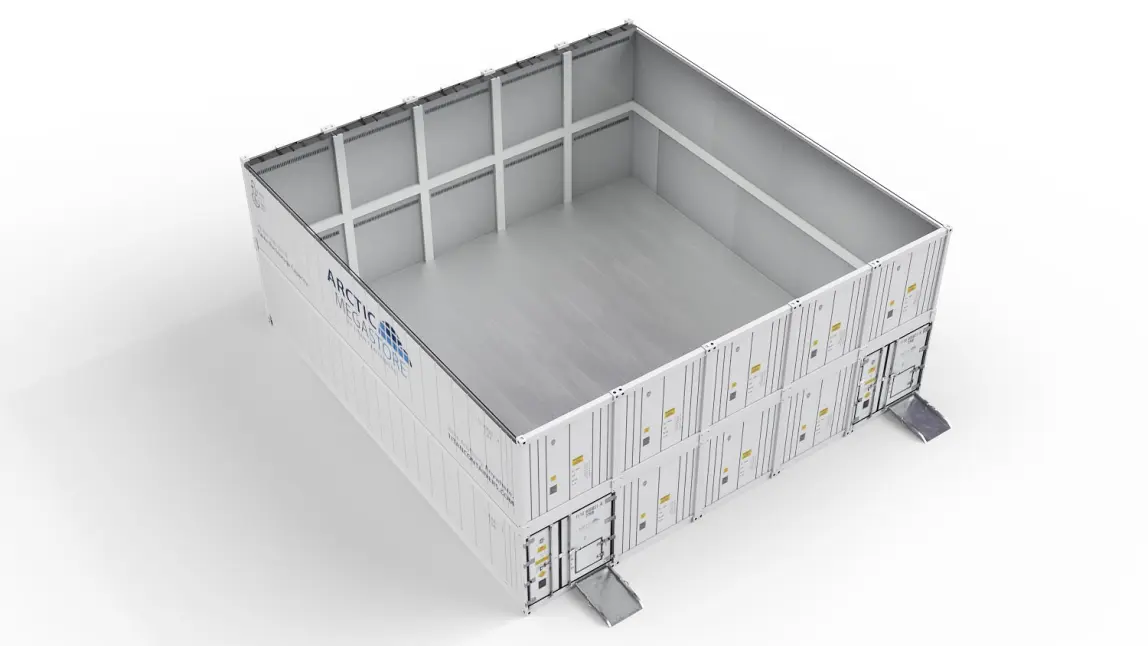

- Create up to 640 m³ of cold storage in just 13 m × 13 m (five 40ft containers side by side, with five more on top to create what’s known as a 5-bay MegaStore)
- No limit on size – create a double-height cooler for any requirement
- Easier to modify than permanent cold rooms
- Possibility of adding partition walls to your fridge/freezer setup for multiple temperature zones
Arctic MegaStore
Accessories
-
See more
SmartArcticControl ArcticStore cold storage remotely with ease. -
See more RampsA range of ramps to make loading/unloading of goods easier when your container is at ground level.
-

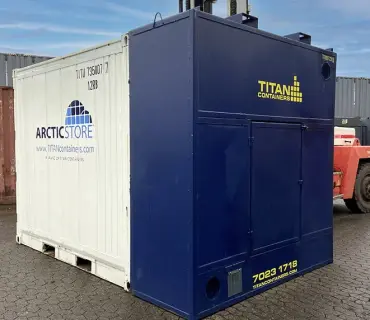

See more Acoustic CabinsAcoustic cabins reduce average dB emissions so you can use your cold storage 24/7 in all areas.
Remote monitoring
24/7 control of your Arctic MegaStore from anywhere in the world
Even large, two-storey installations are easy to manage with SmartArctic, which gives you precise temperature control and real-time monitoring across every level.
Our refrigeration systems include multiple sensors reporting to the hi-tech dataloggers. Live data is transferred real-time through a modem to the remote monitoring platform that YOU control. SmartArctic can be securely accessed by approved members of your team from anywhere in the world via phone, tablet or computer.
Powered by global cold chain tech company Copeland, SmartArctic provides 24/7 control of your Arctic MegaStore – whatever you choose to chill.
It means you can download data, make temperature set point changes, perform remote diagnostics, configure alarms and much more.
SmartArctic comes with a range of benefits, including:
- Lower costs – reduce the need for site visits and easily maintain optimal temperatures.
- Reduced risk – spot potential issues the moment they occur.
- Better performance – SmartArctic’s trend analysis helps you introduce operational best practices.
For full details, please see our latest brochure.
Case Studies
How we make a difference
Real solutions for real challenges across different industries.
Go green with ArcticStore Horizon
Want to reduce your energy consumption and carbon footprint? Choose our new ArcticStore Horizon containers for your MegaStore.
They have:
- Superior insulation
- Integrated solar panels
- Oil-free paint
- Low-impact gases
Using ArcticStore Horizon containers can cut energy use by an average of 55%.
Why not speak to our energy experts for a detailed cost analysis tailored to your business? Please call TITAN on 070 23 17 18 or email us at [email protected].
Sectors
Tailored cold storage for demanding industries
Meet every regulation and deadline with risk-proof containers – monitored, validated and supported around the clock.
Collection
Our full temperature-
Our full temperature-
controlled collection
ArcticStore Horizon
Save 55% in energy (on average) compared to standard reefers thanks to improved insulation and solar panels.
ArcticStore
Our industry-leading signature model is the go-to choice for the majority of clients.
Arctic SuperStore
A modular SuperStore made from your choice of ArcticStores and ArcticBlasts.
Arctic MegaStore
Revolutionary two-storey modular open-plan cold room – the Arctic MegaStore redefines cold storage efficiency.
ArcticBlast
Rapid chilling, freezing and tempering capabilities. Max output: 76,000 Kcal/hour.
Arctic UltraFreezer
Numerous bio- & life-sciences applications, plus great for oily fish like Bluefin tuna.
HotStore
Perfect for heat testing, controlled defrosting, storing chemicals and more.
